Sheet / Plate
This form can produce heating alloys, pure nickel alloys, high-temperature alloys, soft magnetic alloys, expansion alloys, corrosion-resistant alloys and stainless steel materials, etc. Click to view.
- 详细描述
-
Cheng Yuan Alloy performs inspections at all stages of production and our testing equipment verifies the tolerances, surface quality and mechanical properties of our strip/plate sections.
Please see below for standard tolerances.
We can also achieve higher tolerances, please let us know your tolerance requirements.

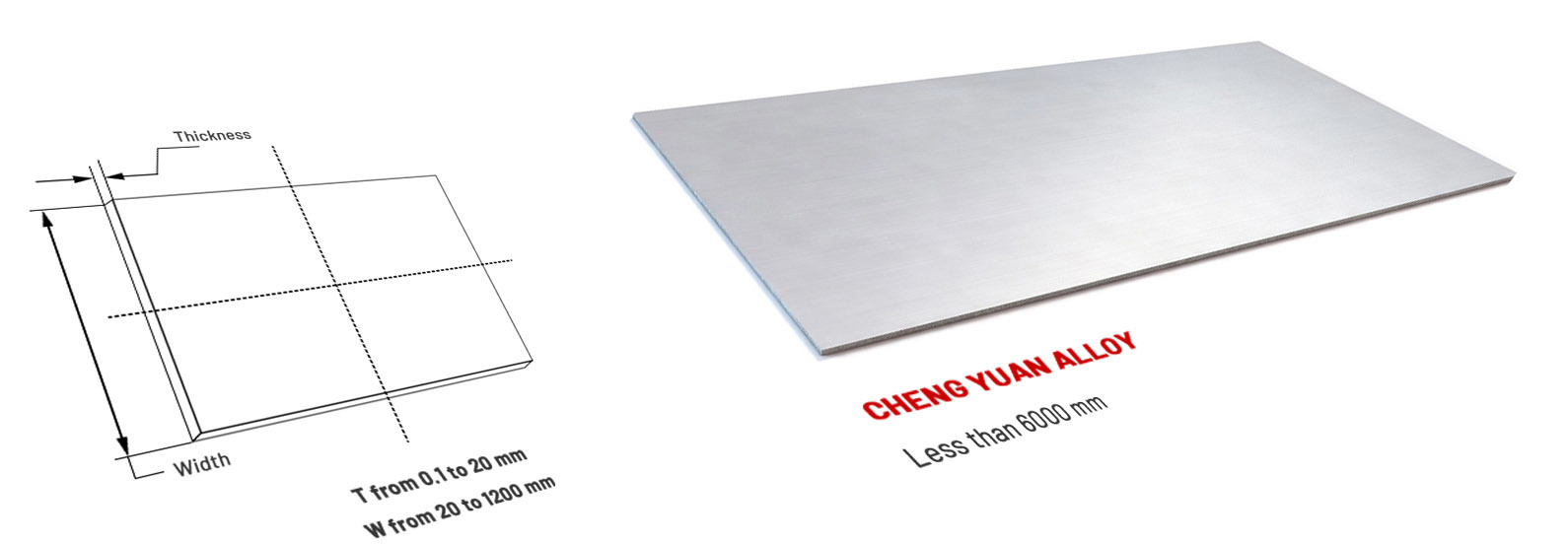

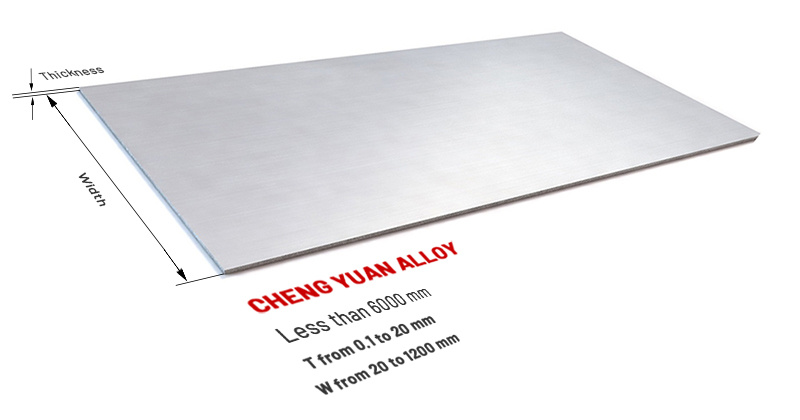

Thickness
Thickness tolerance
Width
Surface
Cold rolled sheet
>0.1 - 0.15 mm
0 - 0.02 mm
5 - 250 mm
Bright
>0.15 - 0.25 mm
0 - 0.03 mm
>0.25 - 0.40 mm
0 - 0.04 mm
>0.40 - 0.70 mm
0 - 0.05 mm
10 - 360 mm
>0.70 - 0.95 mm
0 - 0.07 mm
>0.95 - 1.35 mm
0 - 0.09 mm
20 - 360 mm
>1.35 - 1.75 mm
0 - 0.11 mm
>1.75 - 2.30 mm
0 - 0.13 mm
>2.30 - 3.00 mm
0 - 0.16 mm
Hot rolled sheet
>3.0 - 5 mm
± 0.25 mm
20 - 1200 mm
Polished/ Oxidized/ Pickled
>5.0 - 7.0 mm
± 0.30 mm
>7.0 - 10.0 mm
± 0.40 mm
>10.0 - 20.0 mm
± 0.50 mm
Each sheet is tested for alloy material identification. Depending on quantity, mechanical property tests are performed on each sheet or as per our sampling plan.
Each package is labeled and packed in a suitable pallet or wooden box depending on the chosen mode of transport.
Cheng Yuan Alloy’s Heat-Resistant Alloy Sheet Production and Testing Process
Cheng Yuan Alloy ensures that every heat-resistant alloy sheet undergoes rigorous inspection throughout the production process. From raw material sourcing to the final product, we implement strict quality control measures to guarantee that each sheet meets the required standards for high-performance applications. Our state-of-the-art testing equipment verifies critical factors such as tolerances, surface quality, and mechanical properties, ensuring consistent performance and reliability.
Tolerance Specifications and Customization
Our heat-resistant alloy sheets are available with precise thickness and width tolerances, allowing us to meet the needs of various industries. The thickness tolerance for cold-rolled sheets ranges from 0 - 0.02 mm for sheets greater than 0.1 mm to 0 - 0.16 mm for sheets greater than 2.30 mm. For hot-rolled sheets, we offer tolerances ranging from ± 0.25 mm for sheets between 3.0 - 5 mm to ± 0.50 mm for sheets larger than 10.0 mm.
In addition to our standard tolerances, we offer the ability to achieve higher tolerances based on specific customer requirements. Whether you require ultra-precise measurements for aerospace, automotive, or power generation industries, we can tailor our products to meet your exact specifications.
Mechanical Property Testing
To guarantee the strength, durability, and heat resistance of each sheet, we conduct mechanical property tests during production. These tests may include tensile strength, elongation, hardness, and impact resistance. For large orders, we perform testing on individual sheets or follow a carefully designed sampling plan to ensure that all parts meet the required standards.
By focusing on rigorous quality control at every stage of production, Cheng Yuan Alloy ensures that its heat-resistant alloy sheets deliver superior performance in extreme environments, such as high-temperature applications in the aerospace, automotive, and chemical processing industries.
Packaging and Delivery
Each alloy sheet is meticulously packaged and labeled for safe transportation. Depending on the chosen mode of transport, we carefully pack the sheets in either suitable pallets or wooden boxes to prevent damage during transit. Each package is also labeled with the necessary alloy material identification, allowing for easy tracking and verification of the product upon delivery.
At Cheng Yuan Alloy, we are committed to delivering high-quality heat-resistant alloy sheets that exceed customer expectations. Our advanced manufacturing processes, strict quality control measures, and commitment to customer satisfaction ensure that every sheet is ready for use in demanding environments.
