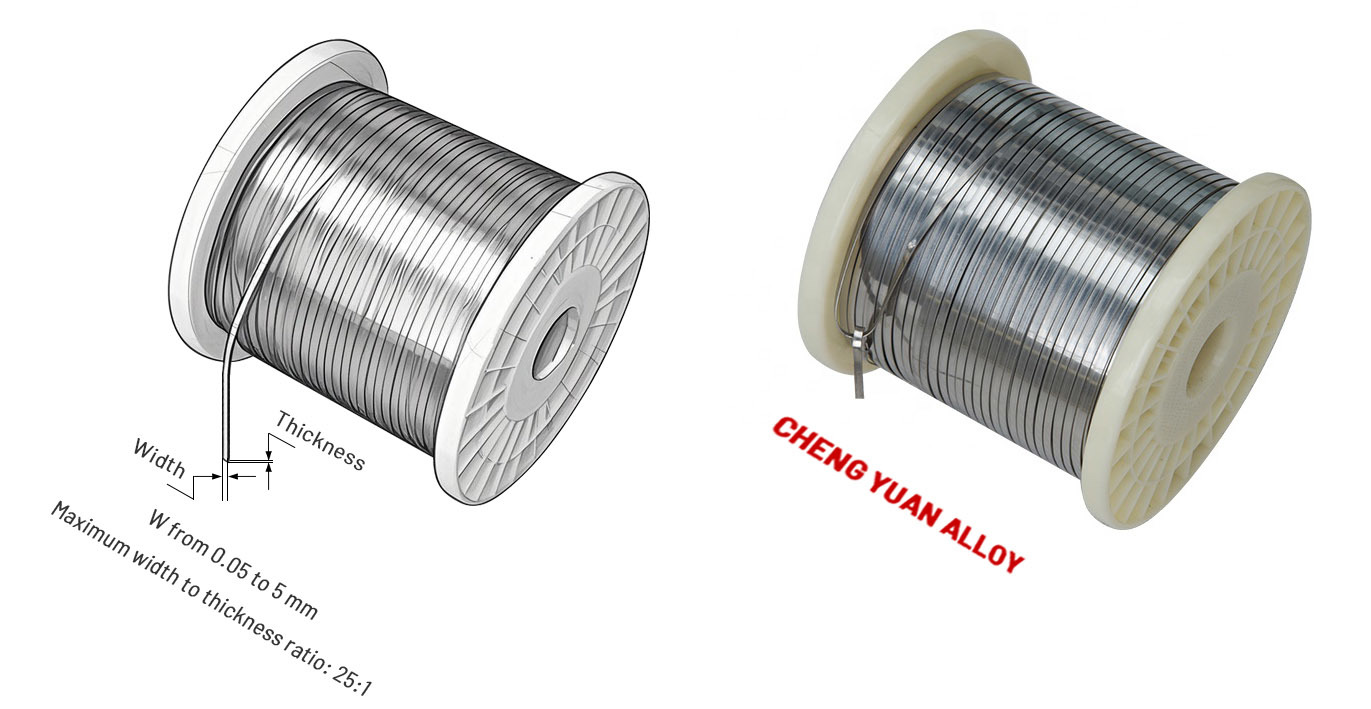

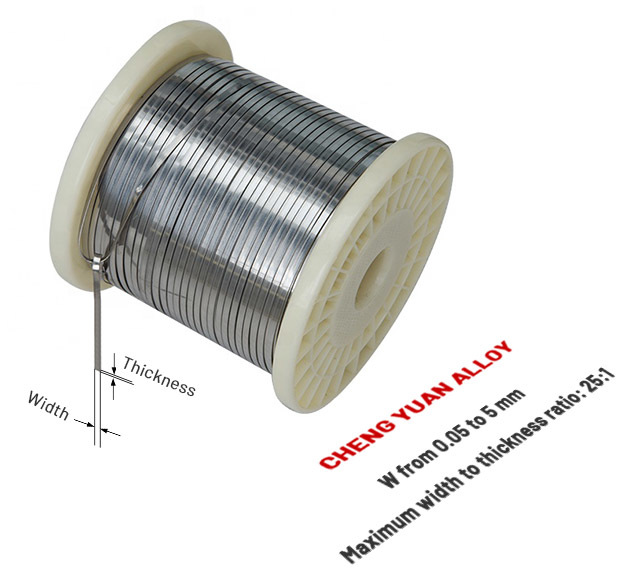

Flat Wire
This form can produce heating alloys, pure nickel alloys, high-temperature alloys, soft magnetic alloys, expansion alloys, corrosion-resistant alloys and stainless steel materials, etc. Click to view.
- 详细描述
-
Cheng Yuan Alloy performs inspections at all stages of production and our testing equipment verifies wire/strip/sheet/rod/tube/section tolerances, surface quality, roundness, strength properties and stress required to cause fracture.

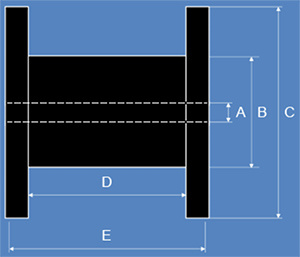

Spool Type A B C D E Range diameters Weight spool Max. weight wire DIN 80 16 mm 50 mm 80 mm 64 mm 80 mm Up to 0.25 mm 70 g 0.5 Kg DIN 100 16 mm 64 mm 100 mm 80 mm 100 mm 0.19 - 0.4 mm 100 g 2 Kg DIN 125 16 mm 80 mm 125 mm 100 mm 125 mm 0.19 - 0.55 mm 200 g 3 Kg DIN 160 22 mm 100 mm 160 mm 128 mm 160 mm 0.25 - 0.71 mm 350 g 5 Kg DIN 200 22 mm 125 mm 200 mm 160 mm 200 mm 0.4 - 0.81 mm 650 g 8-15 Kg DIN 250 36 mm 160 mm 250 mm 160 mm 200 mm 0.4 - 1.5 mm 1050 g 18 Kg DIN 355 36 mm 225 mm 355 mm 160 mm 200 mm 1 - 3.0 mm 2200 g 35 Kg 70*70 ABS 20 mm 45 mm 70 mm 70 mm 85 mm Up to 0.25 mm 50 g 0.5 Kg 69*59 ABS 20 mm 44 mm 69 mm 59 mm 80 mm Up to 0.25 mm 54 g 0.5 Kg 100*70 ABS 20 mm 70 mm 100 mm 70 mm 90 mm 0.19 - 0.4 mm 100 g 1 Kg 125*100 ABS 25 mm 65 mm 125 mm 100 mm 120 mm 0.19 - 0.55 mm 150 g 3 Kg 160*90 ABS 26 mm 70 mm 160 mm 90 mm 110 mm 0.25 - 0.71 mm 300 g 5 Kg 200*100 ABS 25 mm 100 mm 200 mm 100 mm 120 mm 0.4 - 0.81 mm 460 g 10 Kg 250*160 ABS 36 mm 130 mm 250 mm 160 mm 200 mm 0.4 - 1.5 mm 830 g 25 Kg Flat wire is suitable for a variety of applications, including:
Spring-energized seals
Heating elements
Electronic components
Resistors
Seals used in high temperature or corrosive environmentsSome of the advantages of flat wire include:
Available in one continuous length reel at higher weights
No stress risers due to slitting, unlike slit strip
User-friendly radial edges
Short lead times for custom widths and thicknesses
Produced in customer-specified hardness ranges
Available in any of our wide range of alloys
Low minimum order quantitiesEach spool contains one continuous length of wire. In most cases we can split your order into coils of lower weight (please ask for specifics).
Each spool is tested for alloy material identification. Mechanical testing is performed on each spool or as per our sampling plan, depending on the number of spools.
All spools are labeled and packed in appropriate cartons or wooden boxes depending on the chosen mode of transport.
