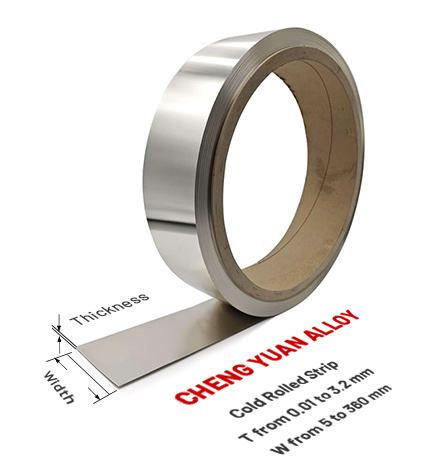

Strip
This form can produce heating alloys, pure nickel alloys, high-temperature alloys, soft magnetic alloys, expansion alloys, corrosion-resistant alloys and stainless steel materials, etc. Click to view.
- 详细描述
-
Cheng Yuan Alloy performs inspections at all stages of production and our testing equipment verifies the tolerances, surface quality and mechanical properties of our strip/plate sections.
Please see below for standard tolerances.
We can also achieve higher tolerances, please let us know your tolerance requirements.
Thickness
Thickness tolerance
Width
Cold rolled strip
>0.01 - 0.04 mm
0 - 0.003 mm
10 - 100 mm
>0.04 - 0.09 mm
0 - 0.01mm
10 - 200 mm
>0.09 - 0.15 mm
0 - 0.02 mm
5 - 250 mm
>0.15 - 0.25 mm
0 - 0.03 mm
>0.25 - 0.40 mm
0 - 0.04 mm
>0.40 - 0.70 mm
0 - 0.05 mm
10 - 360 mm
>0.70 - 0.95 mm
0 - 0.07 mm
>0.95 - 1.35 mm
0 - 0.09 mm
20 - 360 mm
>1.35 - 1.75 mm
0 - 0.11 mm
>1.75 - 2.30 mm
0 - 0.13 mm
>2.30 - 3.00 mm
0 - 0.16 mm
Hot rolled strip
>3.0 - 5 mm
± 0.25 mm
20 - 1000 mm
>5.0 - 7.0 mm
± 0.30 mm
>7.0 - 10.0 mm
± 0.40 mm
>10.0 - 20.0 mm
± 0.50 mm
Each roll of material contains a continuous length of strip
Each coil is tested for alloy material identification. Mechanical property testing is performed on each coil or as per our sampling plan, depending on the number of coils.
All coils are labeled and packed in appropriate pallets or crates depending on the chosen mode of transport.Alloy coil strip is a versatile metal material engineered for high-performance applications across manufacturing, automotive, electronics, and industrial sectors. Produced through precision rolling and heat-treatment processes, it features excellent mechanical strength, corrosion resistance, and dimensional stability. These strips are available in various alloy compositions—such as aluminum, copper, nickel, and stainless steel—each offering distinct properties like high conductivity, heat resistance, or superior formability. Smooth surfaces, tight thickness tolerances, and consistent metallurgical quality make alloy coil strips ideal for stamping, bending, deep drawing, and automated production lines. Widely used in connectors, springs, battery components, heat exchangers, and structural parts, alloy coil strip supports efficient mass production while ensuring reliable performance under demanding conditions. It is a preferred material for modern precision engineering and high-value industrial applications.
