Nichrome
The product forms include wire, strip, plate, bar, wire mesh, powder, pipe, etc. Click to view.
Share to
Category
Tag list
- 详细描述
-
Product application

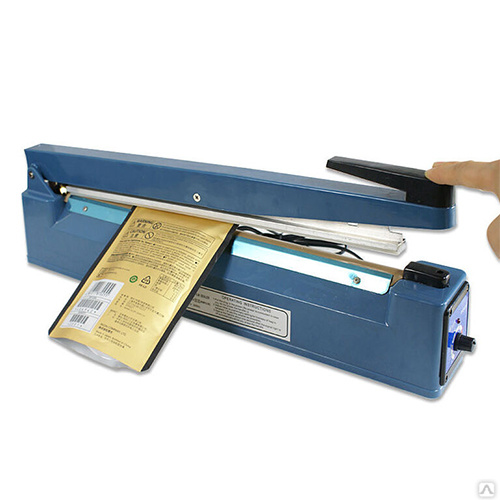

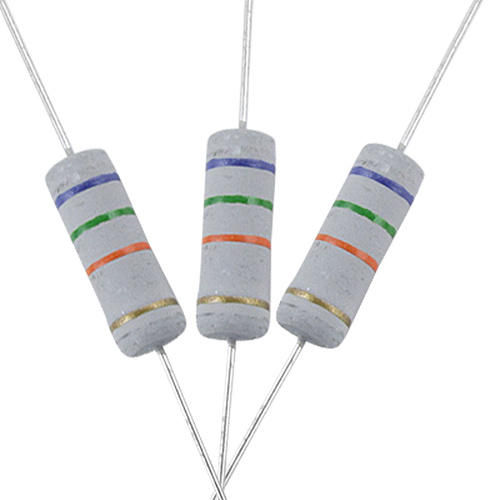

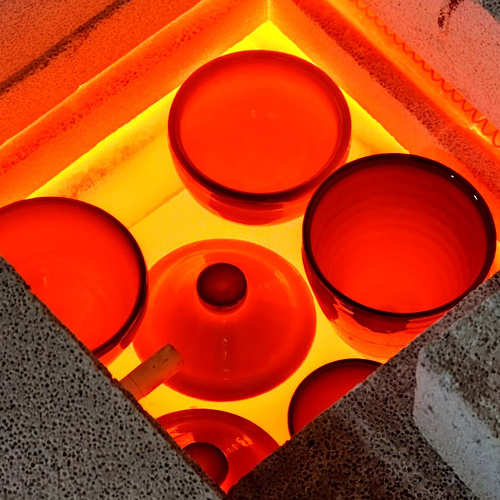

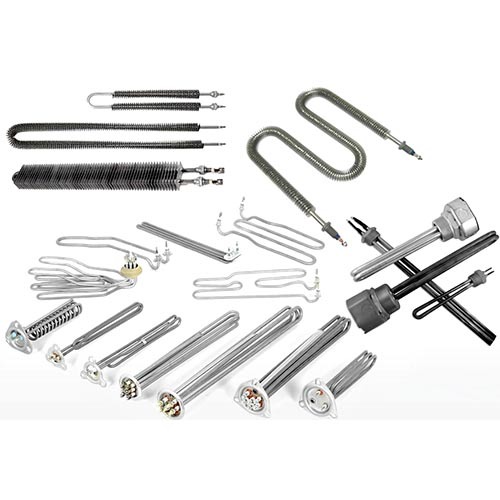

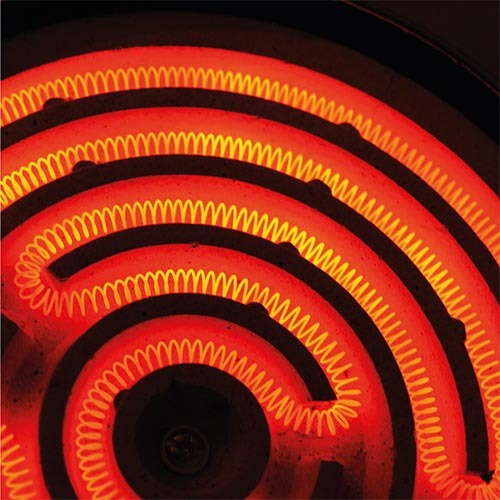

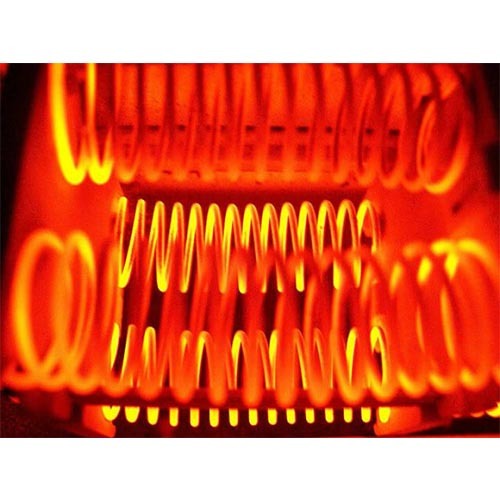

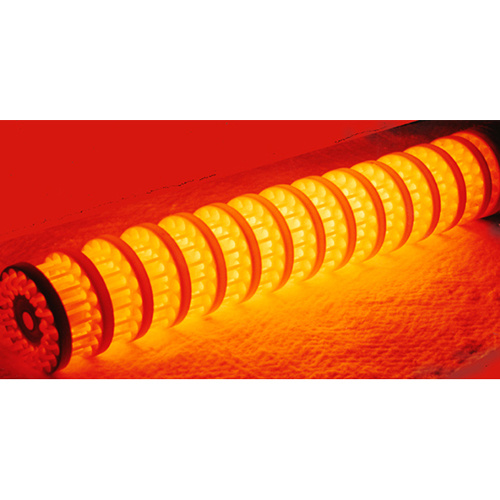

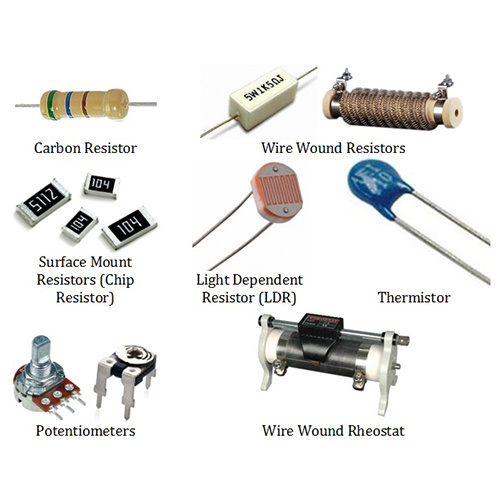

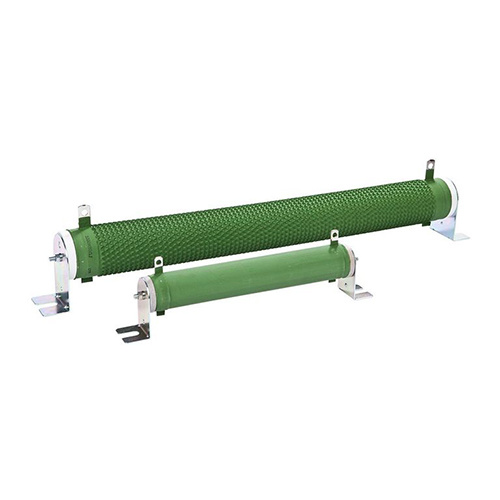

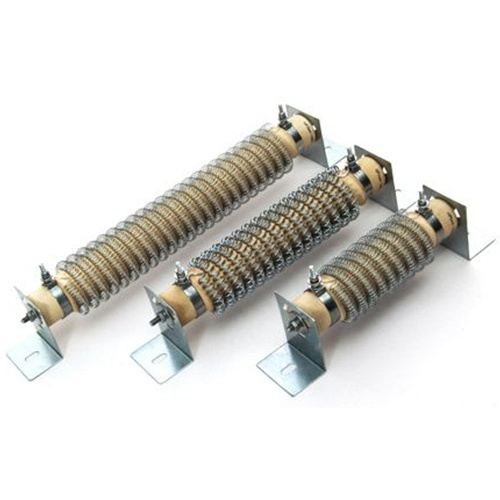

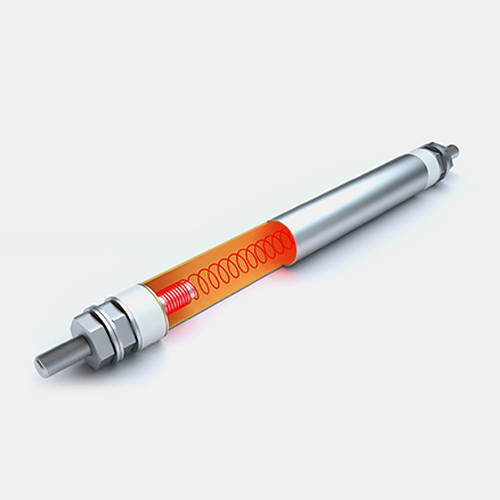

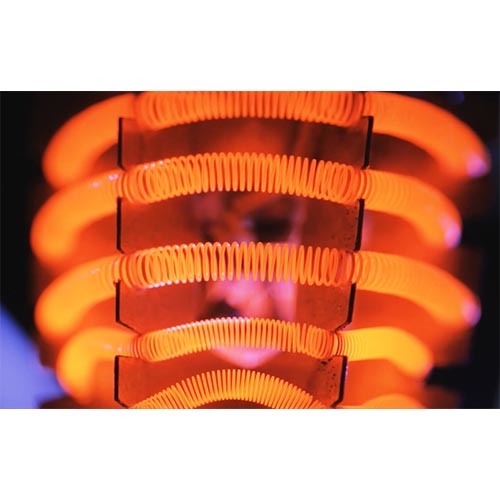

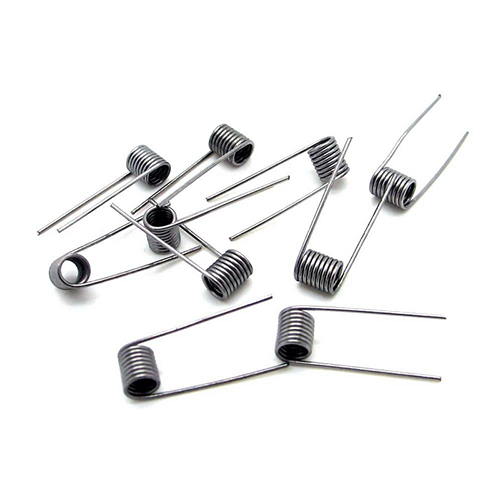

Nichrome is an important alloy material, mainly composed of nickel and chromium, and may contain a small amount of other metals such as iron, manganese and silicon. Nichrome has high resistivity, good weldability, high temperature resistance and oxidation resistance. The service temperature can be as high as 1200℃. It has a longer service life than FeCrAl alloy. It is an ideal material for resistors and heating elements and widely used in industrial furnaces, household appliances and resistor manufacturing, such as wire wound resistors, metal film resistors, electric ovens, hair dryers, water heaters, heat-resistant metal casings, etc.
Chengyuan Alloy mainly produces Nichrome grades including Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, etc. The main production forms include wire, flat wire, strip, foil, plate, bar, wire mesh.
In addition to conventional Cr20Ni80, Chengyuan Alloy can also produce Ni80Cr20-N, which adds a certain amount of zirconium to Ni80Cr20. It has better surface quality, lower impurity content and longer service life than Cr20Ni80.
Chemical composition %
Grade Ni Cr Fe Al Si C P S Mn Ti Zr Cr20Ni80 Bal. 20-23 ≤1 ≤0.5 0.75-1.6 ≤0.08 ≤0.02 ≤0.015 ≤0.6 Cr20Ni80-N Bal. 20-23 ≤1 ≤0.2 1-1.5 ≤0.06 ≤0.02 ≤0.015 ≤0.6 ≤0.02 0.2-0.5 Cr30Ni70 Bal. 28-31 ≤1 ≤0.5 0.75-1.6 ≤0.08 ≤0.02 ≤0.015 ≤0.6 Cr15Ni60 55-61 15-18 Bal. - 0.75-1.6 ≤0.08 ≤0.02 ≤0.015 ≤0.6 Cr20Ni35 34-37 18-21 Bal. - 1-3.0 ≤0.08 ≤0.02 ≤0.015 ≤1 Cr20Ni30 30-34 18-21 Bal. - 1-2.0 ≤0.08 ≤0.02 ≤0.015 ≤1 Mechanical properties
Grade Tensile strength,Mpa (kgf / mm2 ) Elongation%, not less than Wire Strip All wires with diameter > 3.0mm and nichrome strips with thickness > 0.2mm All wires with diameters of 0.10mm~3.0mm Diameter,mm Resistivity,μΩ·m Thickness，mm Resistivity,μΩ·m Cr20Ni80 ≥650 25 20 ＜0.5
0.5~3
＞31.09±0.05
1.13±0.05
1.14±0.05≤0.8
0.8~3
＞31.09±0.05
1.13±0.05
1.14±0.05Cr20Ni80-N ≤880 20 20 ＜0.5
0.5~3
＞31.08±0.05
1.11±0.05
1.12±0.05- 1.11±0.05 Cr30Ni70 ≥650 25 20 ＜0.5
≥0.51.18±0.05
1.20±0.05≤0.8
0.8~3
＞31.18±0.05
1.19±0.05
1.20±0.05Cr15Ni60 ≥600 25 20 ＜0.5
≥0.51.12±0.05
1.15±0.05≤0.8
0.8~3
＞31.12±0.05
1.14±0.05
1.15±0.05Cr20Ni35 ≥600 25 20 - 1.04±0.05 - 1.04±0.05 Cr20Ni30 ≥600 25 20 1.04±0.05 1.04±0.05 Supply form and specification
Form Specification Wire Ø 0.02-10mm Flat wire Width=1~5 mm, Thick=0.08~2 mm Strip Width=8~250 mm, Thick=0.1~3.0 mm Foil Width=6~120 mm, Thick=0.01~0.1mm Bar Diameter=5~100 mm Long=50~5000 mm
